SPN02SYBN-RC
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
SPN02SYBN-RC
Datasheet:
Description:

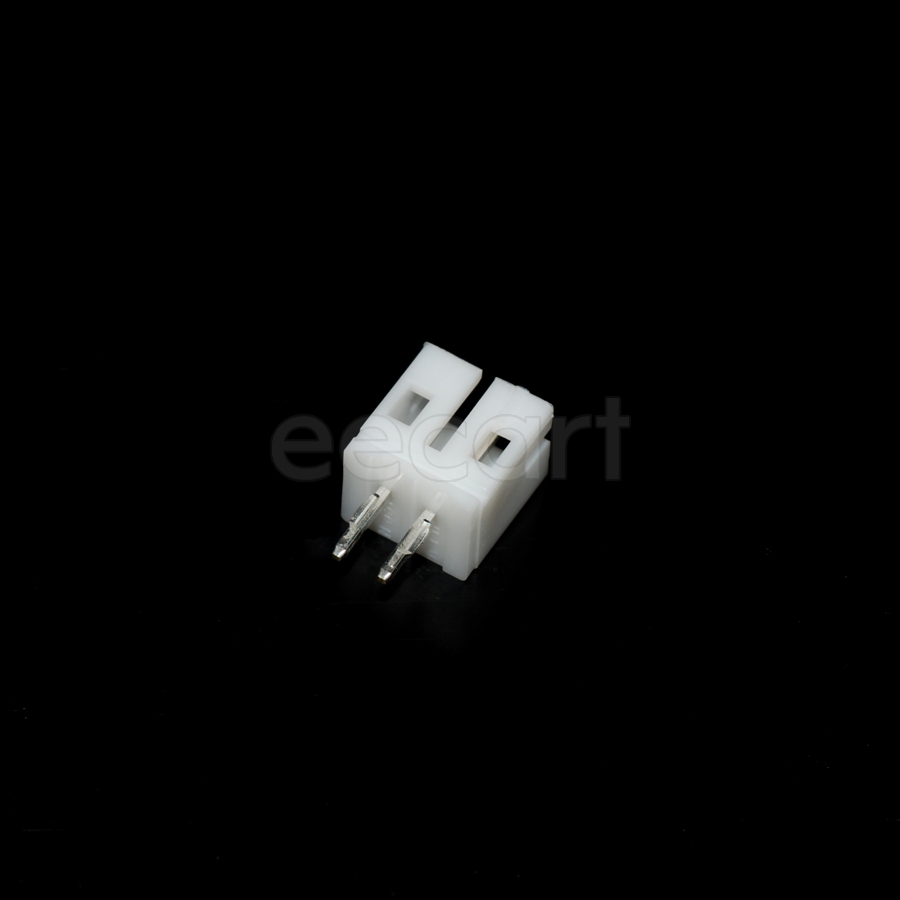

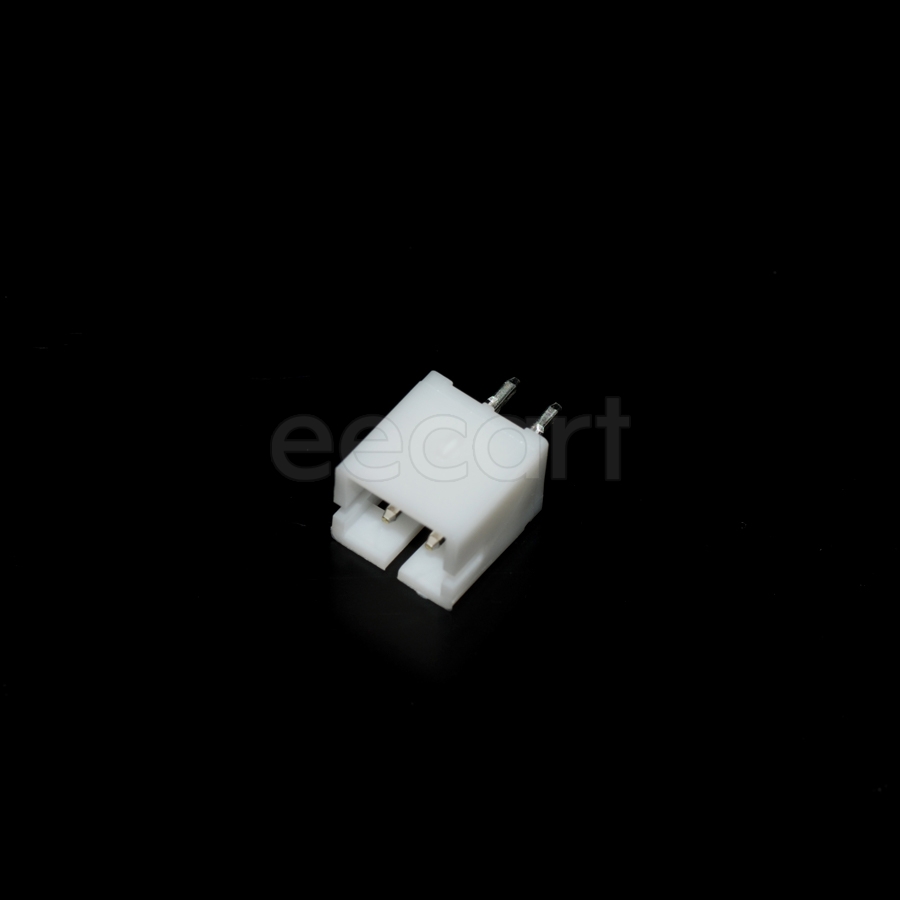

Card Edge Connectors Through Hole Number of Positions:2 Contact Plating:Gold Female Sockets
| Parameter | Value |
|---|---|
| Width | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.8928 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female Sockets |
| Connector Type | Shunt |
| Contact Type | |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Card Thickness | |
| Housing Material | Polyester |
| Mounting Angle |
Stock: 110961
Distributors
pcbx
pcbxUnit Price$0.06279
Ext.Price$0.06279
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06279 | $0.06279 |
| 10 | $0.04569 | $0.45690 |
| 50 | $0.04092 | $2.04600 |
| 100 | $0.03892 | $3.89200 |
| 500 | $0.03471 | $17.35500 |
| 1000 | $0.03306 | $33.06000 |
| 3000 | $0.03058 | $91.74000 |
